1. Introduction to Oil Immersed Transformers
In the complex web of our contemporary electric grid, transformers play an indispensable duty, calmly stepping voltage backwards and forwards to make certain electrical energy can be sent effectively over fars away and distributed safely to our homes and markets. Among the different kinds readily available, the oil immersed transformer stands as a testament to proven integrity and durability. For years, these workhorses have actually developed the foundation of power systems worldwide.
An oil immersed transformer is a sort of electrical transformer that utilizes a customized insulating oil as both a coolant and a protecting tool. This design is mostly utilized for tool to high-power applications, making it a foundation of electric infrastructure. This guide delves deep right into the world of oil submersed power transformers and oil submersed distribution transformers, exploring their technology, applications, and their progressing duty in an age of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer consists of a magnetic core and copper or aluminum windings housed inside a secured tank loaded with insulating oil. The primary feature of the oil is twofold:
1. Insulation: The oil has high dielectric stamina, effectively protecting the high-voltage windings from the transformer’s core and based storage tank. This avoids short circuits and electrical breakdowns.
2. Cooling: As the transformer operates, the windings create significant heat because of I ² R losses. The distributing oil absorbs this warmth, convects it to the transformer’s container walls, and dissipates it into the bordering air. Bigger units commonly feature radiators or fins to raise the surface for extra efficient cooling.
This dual-purpose use of oil makes the oil submersed transformer exceptionally reliable and robust, with the ability of taking care of high tons and standing up to transient overloads better than many dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these devices are oil submersed transformers, they serve distinctive features within the power system network. Understanding the distinction is essential.
An oil immersed power transformer is a heavyweight, generally utilized in transmission networks at producing terminals and major substations. Their primary function is to “step-up” the voltage created at the power plant to exceptionally high degrees (e.g., 138 kV, 230 kV, 500 kV and above) for reliable long-distance transmission, and to “step-down” the voltage at receiving substations for further circulation. They are characterized by their really high power ratings (commonly going beyond 100 MVA), intricate building and construction, and on-load faucet changers for voltage policy.
An oil engaged distribution transformer, on the various other hand, performs the last step in the power distribution chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the low voltages (e.g., 400/230 V) utilized by industrial and domestic consumers. You typically discover them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power ratings (normally as much as 2,500 kVA), and are developed for optimal effectiveness at lower, more constant loads.

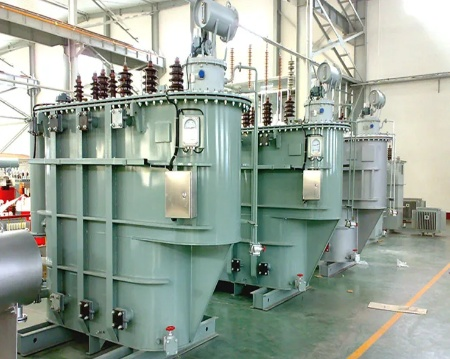

(Oil immersed power transformer)
2. Trick Benefits of Oil Submersed Transformers
The long-lasting appeal of the oil submersed transformer is not unexpected. It offers a suite of engaging advantages that make it the preferred option for numerous requiring applications.
2.1 Superior Air Conditioning and Overload Capacity
The premium thermal capacity of oil contrasted to air enables an oil immersed power transformer to take care of and dissipate heat far more successfully. This equates to a greater overload capability. Throughout durations of height power demand, an oil immersed transformer can take care of short-term overloads without enduring damages, an important function for maintaining grid stability. The oil’s circulation makes sure even warm circulation, avoiding localized locations that can degrade insulation in time.
2.2 Boosted Insulation and Long Service Life
The combination of top notch mineral oil and carefully impregnated paper insulation produces a dielectric system of remarkable strength. This durable insulation system secures the transformer from voltage surges and transients, adding to a functional life-span that can include 30-40 years or even more with correct maintenance. The sealed container likewise shields the interior elements from moisture, dust, and other climatic contaminants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil immersed transformer is commonly one of the most affordable option. The products used– mineral oil, steel storage tank, and copper/aluminum windings– offer a beneficial equilibrium of performance and cost. The high performance of these transformers, especially at their rated tons, causes lower power losses over their lifetime, resulting in considerable price financial savings for utility companies and big commercial users.
3. Hot Subjects and Future Trends
The world of oil submersed transformers is not fixed. It is continuously developing to fulfill brand-new difficulties and integrate with modern innovations.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and safety and security worries are driving a considerable change away from standard mineral oil. The marketplace is swiftly taking on oil submersed transformers loaded with biodegradable esters (synthetic or all-natural). These oils provide a greater fire factor (making them K-class fireproof), are much less toxic, and are readily eco-friendly, considerably reducing the ecological influence in case of a leakage. This trend is making oil immersed distribution transformers more secure for installment in metropolitan locations and ecologically delicate locations.
3.2 Assimilation with Smart Grids and IoT
The contemporary oil immersed power transformer is ending up being an intelligent node in the smart grid. Sensing units are being incorporated to keep track of vital criteria in real-time, consisting of:
Dissolved Gas Analysis (DGA): Identifying mistake gases produced within the oil to forecast incipient mistakes.
Temperature Tracking: Tracking top-oil and hotspot temperatures.
Lots and Power Quality Monitoring.
This data, transferred by means of IoT (Web of Points) platforms, enables predictive maintenance, prevents unintended failures, and optimizes transformer usage and lifespan.
3.3 Supporting the Renewable Energy Shift
The global promote renewables is producing new need for oil submersed transformers. Large solar farms and wind power installations call for robust oil submersed power transformers to step up the created voltage to transmission degrees. Additionally, the intermittent nature of renewables locations better tension on grid elements, and the tested dependability and overload capacity of oil submersed transformers make them suitable for this important function.
4. Selection and Upkeep Best Practices
Choosing the best transformer and maintaining it appropriately is vital to a trusted power system.
4.1 Just how to Pick the Right Oil Immersed Transformer
Picking between an oil submersed power transformer and an oil submersed distribution transformer depends upon the application. Key factors to consider consist of:
1. Voltage Degree and kVA Score: Match the transformer’s requirements to your system’s demands.
2. Application: Transmission substation, industrial plant, or commercial distribution.
3. Area: Indoor vs. outdoor, ecological conditions, and fire safety laws (which might affect the choice of protecting oil).
4. Performance Requirements: Adhere to regional efficiency standards like DOE (USA) or EU CoC (Europe).
5. Spending plan: Consider both the first resources price and the overall expense of possession, consisting of losses.

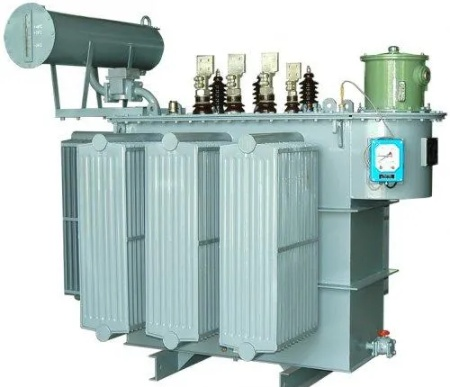

(Oil immersed distribution transformer)
4.2 Necessary Maintenance for Long Life
Aggressive maintenance is important for any oil immersed transformer. A thorough program needs to include:
1. Regular Oil Tasting and Screening: Regular DGA and testing of dielectric strength and wetness content are the most reliable ways to evaluate the health of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for splits, contamination, or leakages.
3. Faucet Changer Upkeep: Normal examination and maintenance of on-load or off-load tap changers.
4. Keep it Tidy and Dry: Making sure the tank exterior, radiators, and rests are tidy and functional.
The oil immersed transformer, in its functions as both a high-capacity oil submersed power transformer and an ubiquitous oil immersed circulation transformer, remains an irreplaceable part of our international energy facilities. Its proven style, combined with ongoing developments in shielding fluids and electronic monitoring, guarantees it will certainly remain to be a reliable, effective, and intelligent option for powering our world for decades ahead. As we build the grids of the future, integrating even more renewables and electronic intelligence, the robust and versatile oil submersed transformer will definitely be at the heart of it.
