1. Basic Structure and Material Make-up
1.1 The Nanoscale Style of Aerogels

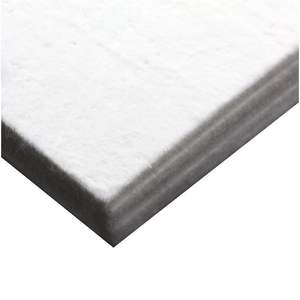

(Aerogel Blanket)
Aerogel blankets are advanced thermal insulation products built upon a special nanostructured structure, where a solid silica or polymer network extends an ultra-high porosity quantity– commonly exceeding 90% air.
This framework stems from the sol-gel procedure, in which a fluid forerunner (typically tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to create a damp gel, adhered to by supercritical or ambient pressure drying to get rid of the liquid without breaking down the fragile permeable network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in size) developing pores on the scale of 10– 50 nm, little enough to subdue air particle motion and thus reduce conductive and convective warmth transfer.
This sensation, called Knudsen diffusion, considerably minimizes the efficient thermal conductivity of the product, often to values between 0.012 and 0.018 W/(m · K) at space temperature level– amongst the most affordable of any strong insulator.
In spite of their reduced density (as reduced as 0.003 g/cm FOUR), pure aerogels are inherently weak, demanding support for practical usage in adaptable blanket form.
1.2 Reinforcement and Composite Design
To get over frailty, aerogel powders or pillars are mechanically incorporated right into coarse substratums such as glass fiber, polyester, or aramid felts, developing a composite “blanket” that retains remarkable insulation while acquiring mechanical toughness.
The reinforcing matrix gives tensile strength, adaptability, and managing durability, making it possible for the product to be cut, curved, and installed in complex geometries without significant performance loss.
Fiber material normally varies from 5% to 20% by weight, meticulously balanced to decrease thermal bridging– where fibers conduct heat throughout the covering– while making certain architectural stability.
Some advanced styles include hydrophobic surface area treatments (e.g., trimethylsilyl teams) to stop moisture absorption, which can degrade insulation efficiency and advertise microbial development.
These alterations enable aerogel blankets to maintain steady thermal homes also in damp settings, increasing their applicability past regulated research laboratory conditions.
2. Manufacturing Processes and Scalability

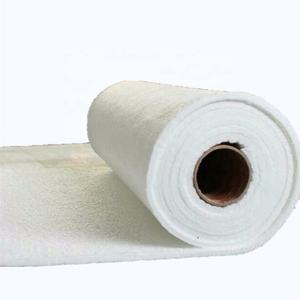

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The production of aerogel blankets begins with the formation of a wet gel within a fibrous floor covering, either by fertilizing the substratum with a fluid precursor or by co-forming the gel and fiber network simultaneously.
After gelation, the solvent need to be removed under problems that stop capillary tension from breaking down the nanopores; historically, this called for supercritical carbon monoxide ₂ drying out, a pricey and energy-intensive process.
Current advancements have actually enabled ambient stress drying via surface area alteration and solvent exchange, significantly minimizing production prices and enabling continual roll-to-roll manufacturing.
In this scalable procedure, long rolls of fiber mat are continually coated with precursor service, gelled, dried out, and surface-treated, enabling high-volume output ideal for commercial applications.
This change has actually been critical in transitioning aerogel coverings from specific niche laboratory materials to readily practical items made use of in construction, energy, and transportation fields.
2.2 Quality Assurance and Performance Uniformity
Guaranteeing consistent pore structure, regular thickness, and trustworthy thermal efficiency across big manufacturing sets is critical for real-world deployment.
Suppliers employ rigorous quality assurance actions, including laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.
Batch-to-batch reproducibility is necessary, particularly in aerospace and oil & gas industries, where failure because of insulation break down can have extreme effects.
Additionally, standardized screening according to ASTM C177 (warm flow meter) or ISO 9288 ensures precise coverage of thermal conductivity and makes it possible for reasonable contrast with traditional insulators like mineral wool or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Across Temperature Ranges
Aerogel coverings display impressive thermal efficiency not just at ambient temperatures but also across extreme arrays– from cryogenic problems listed below -100 ° C to high temperatures exceeding 600 ° C, depending on the base product and fiber kind.
At cryogenic temperature levels, standard foams may fracture or shed efficiency, whereas aerogel blankets continue to be versatile and maintain reduced thermal conductivity, making them optimal for LNG pipelines and storage tanks.
In high-temperature applications, such as industrial heaters or exhaust systems, they provide reliable insulation with lowered thickness compared to bulkier alternatives, saving room and weight.
Their low emissivity and capacity to mirror convected heat further boost efficiency in radiant obstacle arrangements.
This wide operational envelope makes aerogel coverings distinctly versatile among thermal administration remedies.
3.2 Acoustic and Fireproof Characteristics
Beyond thermal insulation, aerogel coverings show noteworthy sound-dampening buildings due to their open, tortuous pore framework that dissipates acoustic energy with thick losses.
They are significantly made use of in auto and aerospace cabins to reduce environmental pollution without adding considerable mass.
Moreover, most silica-based aerogel coverings are non-combustible, accomplishing Course A fire rankings, and do not launch hazardous fumes when exposed to fire– critical for developing safety and security and public facilities.
Their smoke thickness is exceptionally reduced, boosting presence during emergency situation discharges.
4. Applications in Market and Emerging Technologies
4.1 Energy Effectiveness in Structure and Industrial Solution
Aerogel blankets are transforming power performance in style and industrial design by enabling thinner, higher-performance insulation layers.
In structures, they are used in retrofitting historical frameworks where wall surface thickness can not be enhanced, or in high-performance façades and home windows to lessen thermal linking.
In oil and gas, they protect pipelines carrying warm fluids or cryogenic LNG, minimizing power loss and preventing condensation or ice formation.
Their light-weight nature also decreases architectural load, specifically beneficial in offshore platforms and mobile systems.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel coverings safeguard spacecraft from severe temperature level fluctuations throughout re-entry and shield sensitive instruments from thermal cycling in space.
NASA has utilized them in Mars rovers and astronaut suits for passive thermal law.
Automotive makers incorporate aerogel insulation into electrical automobile battery packs to avoid thermal runaway and enhance safety and effectiveness.
Consumer products, including outside clothing, footwear, and camping equipment, currently include aerogel linings for superior warmth without mass.
As manufacturing prices decrease and sustainability boosts, aerogel coverings are positioned to end up being mainstream solutions in international initiatives to decrease energy consumption and carbon exhausts.
Finally, aerogel coverings represent a merging of nanotechnology and practical design, supplying unequaled thermal performance in an adaptable, long lasting layout.
Their ability to save power, room, and weight while preserving security and ecological compatibility settings them as vital enablers of sustainable technology throughout varied industries.
