1. Product Basics and Microstructural Design
1.1 Composition and Crystallographic Security of Alumina

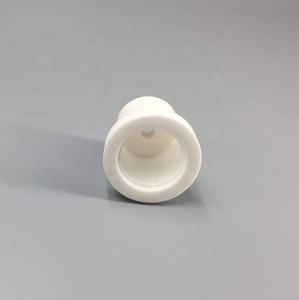

(Alumina Ceramic Nozzles)
Alumina (Al ₂ O SIX), specifically in its alpha stage, is a completely oxidized ceramic with a corundum-type hexagonal close-packed framework, supplying exceptional thermal stability, chemical inertness, and mechanical toughness at elevated temperatures.
High-purity alumina (generally 95– 99.9% Al ₂ O TWO) is preferred for nozzle applications as a result of its very little impurity content, which minimizes grain border weakening and improves resistance to thermal and chemical destruction.
The microstructure, including penalty, equiaxed grains, is crafted during sintering to lessen porosity and optimize thickness, straight influencing the nozzle’s disintegration resistance and structural honesty under high-velocity fluid circulation.
Ingredients such as MgO are typically introduced in trace amounts to hinder unusual grain growth during sintering, guaranteeing a consistent microstructure that sustains long-term dependability.
1.2 Mechanical and Thermal Residences Relevant to Nozzle Efficiency
Alumina porcelains display a Vickers hardness going beyond 1800 HV, making them highly resistant to unpleasant wear from particulate-laden liquids, a critical feature in applications such as sandblasting and abrasive waterjet cutting.
With a flexural strength of 300– 500 MPa and a compressive toughness over 2 Grade point average, alumina nozzles preserve dimensional security under high-pressure procedure, normally varying from 100 to 400 MPa in industrial systems.
Thermally, alumina preserves its mechanical residential or commercial properties as much as 1600 ° C, with a reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that gives outstanding resistance to thermal shock– necessary when revealed to fast temperature level variations during start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate localized warmth without inducing thermal slopes that can lead to breaking, balancing insulation and warm monitoring demands.
2. Production Processes and Geometric Accuracy
2.1 Shaping and Sintering Strategies for Nozzle Fabrication
The manufacturing of alumina ceramic nozzles begins with high-purity alumina powder, which is processed right into an eco-friendly body making use of methods such as cold isostatic pressing (CIP), shot molding, or extrusion, relying on the wanted geometry and batch size.
( Alumina Ceramic Nozzles)
Cold isostatic pushing uses uniform stress from all directions, producing an uniform density circulation critical for lessening defects during sintering.
Injection molding is employed for complicated nozzle forms with inner tapers and great orifices, allowing high dimensional precision and reproducibility in mass production.
After forming, the green compacts undergo a two-stage thermal therapy: debinding to remove organic binders and sintering at temperatures in between 1500 ° C and 1650 ° C to attain near-theoretical thickness via solid-state diffusion.
Exact control of sintering environment and heating/cooling prices is necessary to protect against warping, cracking, or grain coarsening that could jeopardize nozzle efficiency.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles commonly need accuracy machining to accomplish tight resistances, specifically in the orifice area where flow dynamics are most conscious surface area finish and geometry.
Diamond grinding and splashing are used to improve interior and external surfaces, achieving surface area roughness worths below 0.1 µm, which lowers circulation resistance and protects against particle buildup.
The orifice, generally varying from 0.3 to 3.0 mm in size, should be without micro-cracks and chamfers to make sure laminar circulation and constant spray patterns.
Non-destructive testing methods such as optical microscopy, X-ray evaluation, and stress cycling examinations are utilized to validate structural stability and performance uniformity prior to release.
Custom geometries, consisting of convergent-divergent (de Laval) accounts for supersonic flow or multi-hole ranges for follower spray patterns, are progressively fabricated making use of advanced tooling and computer-aided layout (CAD)-driven manufacturing.
3. Useful Advantages Over Alternative Nozzle Products
3.1 Superior Erosion and Deterioration Resistance
Contrasted to metal (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits far higher resistance to unpleasant wear, especially in environments including silica sand, garnet, or various other tough abrasives used in surface area preparation and cutting.
Steel nozzles weaken swiftly as a result of micro-fracturing and plastic contortion, calling for constant substitute, whereas alumina nozzles can last 3– 5 times longer, significantly lowering downtime and functional expenses.
Furthermore, alumina is inert to many acids, alkalis, and solvents, making it suitable for chemical splashing, etching, and cleansing procedures where metal parts would certainly rust or pollute the fluid.
This chemical stability is particularly useful in semiconductor production, pharmaceutical handling, and food-grade applications needing high purity.
3.2 Thermal and Electric Insulation Properties
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · cm) makes it optimal for use in electrostatic spray layer systems, where it avoids charge leakage and makes certain consistent paint atomization.
Its thermal insulation capability enables risk-free operation in high-temperature splashing environments, such as fire spraying or thermal cleaning, without warmth transfer to surrounding parts.
Unlike metals, alumina does not militarize unwanted chemical reactions in reactive liquid streams, maintaining the stability of sensitive formulas.
4. Industrial Applications and Technological Effect
4.1 Duties in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are crucial in unpleasant blasting systems for corrosion elimination, paint removing, and surface area texturing in automotive, aerospace, and building and construction markets.
Their capability to preserve a consistent orifice diameter over expanded usage makes sure consistent rough speed and impact angle, straight affecting surface finish high quality and process repeatability.
In unpleasant waterjet cutting, alumina concentrating tubes lead the high-pressure water-abrasive mixture, enduring abrasive pressures that would quickly break down softer products.
4.2 Use in Additive Production, Spray Finish, and Liquid Control
In thermal spray systems, such as plasma and fire splashing, alumina nozzles direct high-temperature gas flows and molten fragments onto substratums, gaining from their thermal shock resistance and dimensional stability.
They are likewise used in precision spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance makes sure lasting application accuracy.
In 3D printing, especially in binder jetting and material extrusion, alumina nozzles provide fine powders or viscous pastes with marginal blocking or wear.
Arising applications consist of microfluidic systems and lab-on-a-chip gadgets, where miniaturized alumina components offer sturdiness and biocompatibility.
In recap, alumina ceramic nozzles represent an important junction of products scientific research and commercial design.
Their exceptional combination of firmness, thermal stability, and chemical resistance enables trustworthy efficiency in a few of one of the most requiring fluid handling atmospheres.
As industrial procedures press towards greater stress, finer tolerances, and longer service periods, alumina porcelains remain to set the requirement for durable, high-precision flow control elements.
