1. Material Fundamentals and Crystal Chemistry
1.1 Structure and Polymorphic Structure

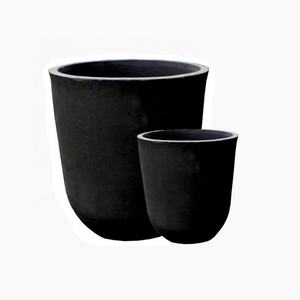

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in piling series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically appropriate.
The solid directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), reduced thermal growth (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have an indigenous glassy phase, contributing to its security in oxidizing and harsh atmospheres as much as 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending upon polytype) likewise endows it with semiconductor buildings, making it possible for dual usage in architectural and electronic applications.
1.2 Sintering Obstacles and Densification Approaches
Pure SiC is very tough to compress because of its covalent bonding and reduced self-diffusion coefficients, requiring using sintering aids or innovative processing techniques.
Reaction-bonded SiC (RB-SiC) is created by infiltrating porous carbon preforms with molten silicon, developing SiC sitting; this approach yields near-net-shape parts with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert environment, achieving > 99% academic thickness and premium mechanical properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide additives such as Al ₂ O SIX– Y TWO O FIVE, developing a short-term liquid that improves diffusion but might decrease high-temperature toughness as a result of grain-boundary stages.
Warm pressing and stimulate plasma sintering (SPS) use rapid, pressure-assisted densification with great microstructures, ideal for high-performance elements calling for marginal grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Solidity, and Use Resistance
Silicon carbide porcelains show Vickers hardness values of 25– 30 Grade point average, second only to ruby and cubic boron nitride among design products.
Their flexural strength usually ranges from 300 to 600 MPa, with fracture sturdiness (K_IC) of 3– 5 MPa · m ¹/ TWO– modest for porcelains however enhanced via microstructural design such as whisker or fiber support.
The combination of high solidity and flexible modulus (~ 410 GPa) makes SiC remarkably resistant to abrasive and erosive wear, outmatching tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives numerous times longer than traditional options.
Its reduced density (~ 3.1 g/cm ³) additional contributes to use resistance by minimizing inertial forces in high-speed rotating parts.
2.2 Thermal Conductivity and Stability
One of SiC’s most distinct attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline forms, and as much as 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels other than copper and aluminum.
This home allows efficient warmth dissipation in high-power electronic substratums, brake discs, and heat exchanger elements.
Coupled with reduced thermal expansion, SiC exhibits exceptional thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths suggest resilience to quick temperature adjustments.
For instance, SiC crucibles can be warmed from space temperature to 1400 ° C in minutes without breaking, a task unattainable for alumina or zirconia in similar conditions.
Additionally, SiC preserves stamina approximately 1400 ° C in inert atmospheres, making it perfect for furnace components, kiln furnishings, and aerospace parts exposed to severe thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Behavior in Oxidizing and Decreasing Atmospheres
At temperatures listed below 800 ° C, SiC is extremely steady in both oxidizing and lowering settings.
Over 800 ° C in air, a protective silica (SiO ₂) layer kinds on the surface area through oxidation (SiC + 3/2 O TWO → SiO TWO + CO), which passivates the material and slows more destruction.
Nevertheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, causing increased economic crisis– an important factor to consider in generator and combustion applications.
In minimizing ambiences or inert gases, SiC remains steady as much as its disintegration temperature (~ 2700 ° C), with no stage modifications or stamina loss.
This security makes it appropriate for liquified steel handling, such as light weight aluminum or zinc crucibles, where it stands up to wetting and chemical strike much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is virtually inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid combinations (e.g., HF– HNO THREE).
It shows excellent resistance to alkalis up to 800 ° C, though long term exposure to thaw NaOH or KOH can cause surface area etching through formation of soluble silicates.
In liquified salt settings– such as those in focused solar energy (CSP) or atomic power plants– SiC shows remarkable corrosion resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its use in chemical procedure devices, including shutoffs, linings, and heat exchanger tubes handling hostile media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Makes Use Of in Energy, Defense, and Production
Silicon carbide porcelains are indispensable to countless high-value industrial systems.
In the energy market, they serve as wear-resistant liners in coal gasifiers, components in nuclear fuel cladding (SiC/SiC compounds), and substratums for high-temperature solid oxide fuel cells (SOFCs).
Protection applications include ballistic armor plates, where SiC’s high hardness-to-density proportion provides premium security against high-velocity projectiles contrasted to alumina or boron carbide at lower cost.
In production, SiC is used for precision bearings, semiconductor wafer handling elements, and abrasive blasting nozzles due to its dimensional stability and purity.
Its usage in electrical car (EV) inverters as a semiconductor substratum is swiftly growing, driven by performance gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Recurring research concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which show pseudo-ductile actions, improved toughness, and maintained strength above 1200 ° C– optimal for jet engines and hypersonic vehicle leading edges.
Additive manufacturing of SiC using binder jetting or stereolithography is progressing, allowing complex geometries formerly unattainable with traditional developing approaches.
From a sustainability viewpoint, SiC’s long life minimizes substitute frequency and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being established via thermal and chemical healing processes to redeem high-purity SiC powder.
As markets push toward greater performance, electrification, and extreme-environment procedure, silicon carbide-based porcelains will certainly remain at the forefront of sophisticated products design, bridging the gap between architectural durability and practical adaptability.
