Graphene was very first uncovered experimentally in 2004, bringing hope to the growth of high-performance electronic gadgets. Graphene is a two-dimensional crystal made up of a solitary layer of carbon atoms organized in a honeycomb form. It has an unique digital band framework and exceptional electronic properties. The electrons in graphene are massless Dirac fermions, which can shuttle at extremely rapid speeds. The provider flexibility of graphene can be more than 100 times that of silicon. “Carbon-based nanoelectronics” based upon graphene is expected to introduce a new era of human information society.

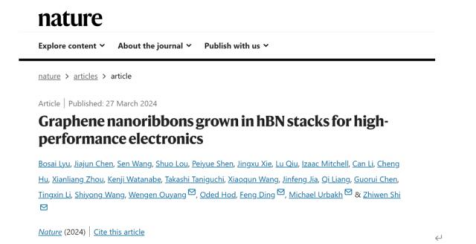

(Graphene nanoribbons grown in hBN stacks for high-performance electronics on “Nature”)

Nevertheless, two-dimensional graphene has no band space and can not be straight utilized to make transistor devices.

Theoretical physicists have suggested that band spaces can be presented via quantum confinement impacts by reducing two-dimensional graphene right into quasi-one-dimensional nanostrips. The band void of graphene nanoribbons is inversely proportional to its size. Graphene nanoribbons with a width of less than 5 nanometers have a band space equivalent to silicon and are suitable for producing transistors. This sort of graphene nanoribbon with both band gap and ultra-high movement is one of the suitable candidates for carbon-based nanoelectronics.

Consequently, scientific researchers have spent a great deal of power in researching the prep work of graphene nanoribbons. Although a range of methods for preparing graphene nanoribbons have actually been developed, the problem of preparing top notch graphene nanoribbons that can be made use of in semiconductor tools has yet to be fixed. The provider wheelchair of the prepared graphene nanoribbons is far less than the academic worths. On the one hand, this difference comes from the poor quality of the graphene nanoribbons themselves; on the various other hand, it comes from the problem of the setting around the nanoribbons. Because of the low-dimensional residential or commercial properties of the graphene nanoribbons, all its electrons are subjected to the external environment. Therefore, the electron’s motion is exceptionally conveniently impacted by the surrounding environment.

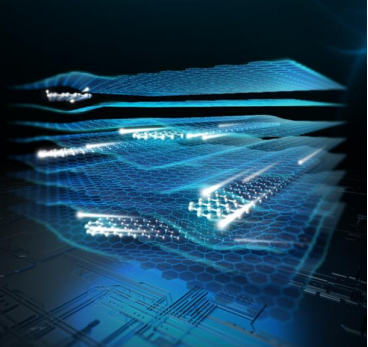

(Concept diagram of carbon-based chip based on encapsulated graphene nanoribbons)

In order to enhance the performance of graphene devices, lots of methods have been tried to minimize the condition impacts brought on by the atmosphere. The most effective approach to date is the hexagonal boron nitride (hBN, hereafter referred to as boron nitride) encapsulation approach. Boron nitride is a wide-bandgap two-dimensional split insulator with a honeycomb-like hexagonal lattice-like graphene. More importantly, boron nitride has an atomically flat surface area and superb chemical stability. If graphene is sandwiched (enveloped) in between two layers of boron nitride crystals to develop a sandwich framework, the graphene “sandwich” will be separated from “water, oxygen, and microorganisms” in the complicated outside environment, making the “sandwich” Constantly in the “best and freshest” problem. Several researches have revealed that after graphene is encapsulated with boron nitride, numerous residential properties, including carrier mobility, will certainly be significantly boosted. Nevertheless, the existing mechanical product packaging techniques can be more effective. They can presently only be used in the field of scientific research study, making it tough to fulfill the requirements of large production in the future advanced microelectronics sector.

In action to the above challenges, the group of Teacher Shi Zhiwen of Shanghai Jiao Tong University took a new approach. It created a new preparation approach to accomplish the embedded development of graphene nanoribbons between boron nitride layers, forming an unique “in-situ encapsulation” semiconductor residential property. Graphene nanoribbons.

The growth of interlayer graphene nanoribbons is accomplished by nanoparticle-catalyzed chemical vapor deposition (CVD). “In 2022, we reported ultra-long graphene nanoribbons with nanoribbon lengths approximately 10 microns grown externally of boron nitride, yet the length of interlayer nanoribbons has actually far surpassed this record. Now restricting graphene nanoribbons The ceiling of the length is no more the growth mechanism however the size of the boron nitride crystal.” Dr. Lu Bosai, the very first writer of the paper, claimed that the length of graphene nanoribbons expanded in between layers can reach the sub-millimeter level, far surpassing what has actually been previously reported. Result.


“This sort of interlayer embedded growth is outstanding.” Shi Zhiwen claimed that product development generally entails expanding another externally of one base material, while the nanoribbons prepared by his study group expand straight on the surface of hexagonal nitride between boron atoms.

The aforementioned joint study team functioned very closely to expose the growth device and discovered that the formation of ultra-long zigzag nanoribbons between layers is the result of the super-lubricating buildings (near-zero rubbing loss) between boron nitride layers.

Experimental observations show that the growth of graphene nanoribbons only takes place at the fragments of the stimulant, and the position of the catalyst continues to be unmodified throughout the process. This reveals that the end of the nanoribbon applies a pushing pressure on the graphene nanoribbon, triggering the whole nanoribbon to get rid of the friction between it and the surrounding boron nitride and continually slide, causing the head end to move away from the catalyst particles gradually. Therefore, the scientists hypothesize that the rubbing the graphene nanoribbons experience need to be extremely little as they glide between layers of boron nitride atoms.

Given that the produced graphene nanoribbons are “encapsulated in situ” by insulating boron nitride and are safeguarded from adsorption, oxidation, environmental air pollution, and photoresist contact during device handling, ultra-high efficiency nanoribbon electronic devices can theoretically be acquired device. The researchers prepared field-effect transistor (FET) devices based upon interlayer-grown nanoribbons. The dimension results revealed that graphene nanoribbon FETs all displayed the electric transport qualities of normal semiconductor devices. What is more noteworthy is that the tool has a carrier movement of 4,600 cm2V– 1s– 1, which goes beyond formerly reported results.

These outstanding residential properties show that interlayer graphene nanoribbons are anticipated to play an essential role in future high-performance carbon-based nanoelectronic gadgets. The study takes a crucial action towards the atomic manufacture of advanced packaging architectures in microelectronics and is anticipated to impact the field of carbon-based nanoelectronics significantly.
