1. The Scientific research and Structure of Alumina Ceramic Materials
1.1 Crystallography and Compositional Variants of Aluminum Oxide

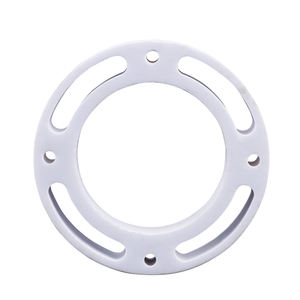

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from aluminum oxide (Al ₂ O FOUR), a substance renowned for its remarkable equilibrium of mechanical strength, thermal security, and electrical insulation.
The most thermodynamically steady and industrially pertinent stage of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) framework belonging to the corundum family.
In this plan, oxygen ions develop a thick latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites, leading to a highly steady and robust atomic framework.
While pure alumina is in theory 100% Al ₂ O SIX, industrial-grade materials commonly contain small percentages of additives such as silica (SiO ₂), magnesia (MgO), or yttria (Y TWO O ₃) to control grain development throughout sintering and enhance densification.
Alumina ceramics are classified by purity levels: 96%, 99%, and 99.8% Al ₂ O three prevail, with greater purity correlating to improved mechanical properties, thermal conductivity, and chemical resistance.
The microstructure– specifically grain dimension, porosity, and stage circulation– plays a vital role in figuring out the last efficiency of alumina rings in service settings.
1.2 Trick Physical and Mechanical Quality
Alumina ceramic rings exhibit a suite of residential properties that make them essential sought after commercial setups.
They possess high compressive strength (as much as 3000 MPa), flexural strength (normally 350– 500 MPa), and outstanding hardness (1500– 2000 HV), making it possible for resistance to wear, abrasion, and deformation under lots.
Their reduced coefficient of thermal development (approximately 7– 8 × 10 ⁻⁶/ K) ensures dimensional stability throughout broad temperature ranges, reducing thermal anxiety and splitting during thermal biking.
Thermal conductivity varieties from 20 to 30 W/m · K, depending on pureness, allowing for modest warmth dissipation– enough for many high-temperature applications without the demand for energetic cooling.

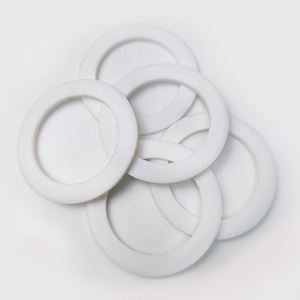

( Alumina Ceramics Ring)
Electrically, alumina is a superior insulator with a volume resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric strength of around 10– 15 kV/mm, making it excellent for high-voltage insulation elements.
Additionally, alumina demonstrates exceptional resistance to chemical assault from acids, antacid, and molten metals, although it is prone to strike by solid antacid and hydrofluoric acid at elevated temperature levels.
2. Production and Precision Engineering of Alumina Bands
2.1 Powder Processing and Shaping Strategies
The manufacturing of high-performance alumina ceramic rings begins with the option and prep work of high-purity alumina powder.
Powders are usually synthesized through calcination of aluminum hydroxide or with progressed methods like sol-gel processing to attain great bit dimension and slim size distribution.
To develop the ring geometry, a number of shaping techniques are used, consisting of:
Uniaxial pushing: where powder is compacted in a die under high stress to form a “eco-friendly” ring.
Isostatic pressing: applying uniform stress from all instructions using a fluid medium, leading to greater thickness and more uniform microstructure, particularly for complicated or huge rings.
Extrusion: ideal for lengthy cylindrical kinds that are later on reduced right into rings, frequently utilized for lower-precision applications.
Shot molding: used for elaborate geometries and tight resistances, where alumina powder is mixed with a polymer binder and infused right into a mold and mildew.
Each approach affects the last density, grain alignment, and flaw distribution, demanding careful process choice based on application demands.
2.2 Sintering and Microstructural Development
After forming, the environment-friendly rings undertake high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or managed environments.
Throughout sintering, diffusion systems drive fragment coalescence, pore removal, and grain growth, leading to a totally thick ceramic body.
The price of heating, holding time, and cooling down account are precisely regulated to stop cracking, warping, or exaggerated grain development.
Ingredients such as MgO are commonly introduced to inhibit grain border mobility, resulting in a fine-grained microstructure that improves mechanical toughness and dependability.
Post-sintering, alumina rings might undertake grinding and splashing to attain limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface area finishes (Ra < 0.1 µm), important for sealing, birthing, and electric insulation applications.
3. Functional Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely used in mechanical systems due to their wear resistance and dimensional security.
Key applications include:
Sealing rings in pumps and valves, where they stand up to disintegration from rough slurries and destructive liquids in chemical processing and oil & gas industries.
Bearing parts in high-speed or harsh atmospheres where metal bearings would certainly deteriorate or need frequent lubrication.
Overview rings and bushings in automation tools, supplying reduced rubbing and lengthy service life without the need for greasing.
Use rings in compressors and generators, lessening clearance between revolving and stationary components under high-pressure conditions.
Their ability to maintain performance in completely dry or chemically aggressive environments makes them above numerous metallic and polymer alternatives.
3.2 Thermal and Electric Insulation Roles
In high-temperature and high-voltage systems, alumina rings act as critical insulating elements.
They are used as:
Insulators in heating elements and heating system components, where they support resisting cords while holding up against temperature levels over 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, preventing electrical arcing while keeping hermetic seals.
Spacers and support rings in power electronic devices and switchgear, separating conductive parts in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their reduced dielectric loss and high breakdown stamina ensure signal stability.
The combination of high dielectric toughness and thermal security allows alumina rings to work accurately in atmospheres where organic insulators would weaken.
4. Product Advancements and Future Expectation
4.1 Compound and Doped Alumina Equipments
To further improve efficiency, scientists and makers are establishing innovative alumina-based composites.
Instances consist of:
Alumina-zirconia (Al Two O FOUR-ZrO ₂) compounds, which exhibit enhanced crack sturdiness via transformation toughening mechanisms.
Alumina-silicon carbide (Al two O SIX-SiC) nanocomposites, where nano-sized SiC particles improve hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain border chemistry to boost high-temperature toughness and oxidation resistance.
These hybrid products extend the functional envelope of alumina rings into more severe conditions, such as high-stress vibrant loading or rapid thermal biking.
4.2 Arising Fads and Technological Integration
The future of alumina ceramic rings hinges on smart combination and precision production.
Trends consist of:
Additive production (3D printing) of alumina parts, allowing complicated inner geometries and personalized ring designs formerly unachievable through conventional approaches.
Useful grading, where structure or microstructure differs throughout the ring to optimize performance in different zones (e.g., wear-resistant outer layer with thermally conductive core).
In-situ surveillance via embedded sensors in ceramic rings for predictive maintenance in industrial equipment.
Raised usage in renewable resource systems, such as high-temperature fuel cells and concentrated solar energy plants, where product dependability under thermal and chemical anxiety is extremely important.
As sectors require higher efficiency, longer life expectancies, and reduced maintenance, alumina ceramic rings will certainly remain to play a critical role in allowing next-generation engineering services.
5. Distributor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina ceramic lining, please feel free to contact us. (nanotrun@yahoo.com)
