1. Material Features and Architectural Layout
1.1 Composition and Crystalline Phases of Alumina

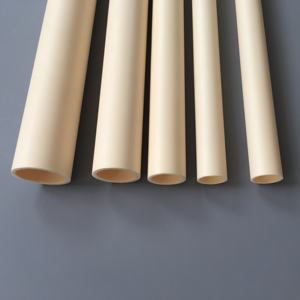

( Alumina Ceramic Tubes)
Alumina (Al Two O SIX) ceramic tubes are mainly made from high-purity aluminum oxide, with purity levels generally ranging from 90% to 99.8%, depending on the designated application.
The dominant crystalline stage in totally dense, high-temperature sintered tubes is α-alumina (diamond), which exhibits a trigonal crystal framework and remarkable thermodynamic security.
This phase shift from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina takes place above 1100 ° C and results in a dense, interlocking microstructure that gives exceptional mechanical strength and chemical resistance.
Greater pureness grades (≥ 99.5%) make the most of firmness, wear resistance, and dielectric efficiency, while lower-purity formulations may include additional phases like mullite or glazed grain border stages to minimize expense or tailor thermal development.
The ability to regulate grain size, porosity, and stage composition throughout processing allows engineers to tweak alumina tubes for specific functional needs across diverse commercial domain names.
1.2 Mechanical, Thermal, and Electrical Quality
Alumina ceramic tubes show an unique combination of physical homes that make them important sought after engineering settings.
With a Vickers firmness exceeding 1500 HV, they are very resistant to abrasion and erosion, outshining most steels and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, making it possible for architectural use under high mechanical loads, while flexural stamina usually varies from 300 to 500 MPa, depending upon density and surface area finish.
Thermally, alumina keeps security as much as 1700 ° C in oxidizing ambiences, with a low coefficient of thermal growth (~ 8 ppm/K), contributing to superb thermal shock resistance when properly created.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to steels or aluminum nitride, it suffices for numerous high-temperature applications where electrical insulation and structural integrity are prioritized.
Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it excellent for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.

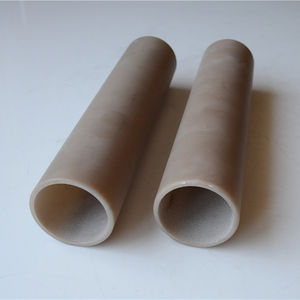

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Forming Strategies
The manufacturing of alumina ceramic tubes involves advanced creating approaches tailored to attain specific measurements, wall density harmony, and surface area quality.
Typical strategies consist of extrusion, isostatic pressing, and slip spreading, each matched to various dimension ranges and performance demands.
Extrusion is extensively utilized for long, straight tubes with constant cross-sections, where a plasticized alumina paste is compelled via a die and cut to length before drying out and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) applies consistent pressure from all instructions to compact eco-friendly bodies, decreasing distortion and enhancing thickness homogeneity.
Slip spreading, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is ideal for complex or large-diameter geometries with variable wall density.
After developing, tubes go through careful drying out to prevent breaking, complied with by binder burnout and high-temperature sintering (1500– 1650 ° C )to achieve complete densification and dimensional security.
2.2 Finishing and Quality Control
Post-sintering operations such as centerless grinding, washing, and brightening are employed to accomplish tight tolerances, smooth surface area finishes, and accurate inner and external diameters.
Resistances as tight as ± 0.01 mm are possible for essential applications in semiconductor handling or logical instrumentation.
Surface area roughness can be reduced to Ra < 0.1 µm, reducing particle capturing and enhancing compatibility with ultra-high vacuum cleaner (UHV) or cleanroom environments.
Non-destructive screening techniques– including ultrasonic inspection, X-ray radiography, and dye penetrant screening– make certain structural stability and lack of fractures or gaps.
Dimensional width making use of coordinate determining machines (CMM) or laser scanning confirms conformity with style specs, particularly for custom or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among the most compelling advantages of alumina ceramic tubes is their capacity to withstand extreme thermal and chemical problems where metals and polymers stop working.
They stay dimensionally secure and mechanically robust in continuous solution at temperature levels over 1500 ° C, making them appropriate for heater liners, thermocouple defense sheaths, and radiant heating system tubes.
Their inertness to thaw metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), molten salts, and numerous acids (other than hydrofluoric and hot phosphoric acid) makes it possible for usage in metallurgical and chemical handling devices.
In oxidizing and minimizing atmospheres, alumina does not deteriorate or militarize undesirable responses, maintaining procedure purity in semiconductor and glass production.
This chemical inertness additionally stops contamination in high-purity liquid dealing with systems, including those used in pharmaceutical and food processing sectors.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma settings, alumina tubes act as insulating obstacles that keep circuit integrity under high voltage and raised temperature.
They are made use of in high-intensity discharge (HID) lights, where they have ionized gases at temperature levels exceeding 1000 ° C while standing up to electrical possibilities of several kilovolts.
In plasma etching and deposition systems, alumina tubes function as dielectric windows or gas circulation elements, resisting ion barrage and thermal cycling without fracturing or outgassing.
Their low dielectric loss and high arc resistance avoid electrical tracking and malfunction, ensuring lengthy life span in switchgear and power transmission elements.
These properties are critical in keeping procedure security and tools reliability in innovative production and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Commercial Processing Systems
Alumina ceramic tubes are important to a variety of industrial processes that require resilience under extreme problems.
In thermal handling, they function as safety sheaths for thermocouples and heating elements in kilns, heating systems, and warm treatment devices, protecting delicate components from corrosive environments and mechanical wear.
In liquid handling, they transport aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows quick heating and cooling cycles without failing, a vital advantage in cyclic commercial procedures.
In glass production, alumina tubes assist liquified glass circulations and support creating devices, withstanding disintegration from thick, high-temperature thaws.
4.2 Advanced Technologies and Future Assimilation
Beyond conventional commercial uses, alumina tubes are finding new roles in cutting-edge modern technologies.
In semiconductor fabrication, ultra-pure alumina tubes are used in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metal contamination have to be reduced.
In clinical tools, biocompatible alumina tubes work as protecting parts in surgical devices, oral implants, and diagnostic sensing units.
Research study is exploring functionalized alumina tubes with embedded sensors or conductive traces for wise architectural monitoring in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is becoming a technique to create intricate tube geometries with internal networks or graded structures, enabling next-generation warmth exchangers and microreactors.
As sectors push towards greater performance, cleaner processes, and greater integrity, alumina ceramic tubes continue to develop as enabling parts in the infrastructure of contemporary technology.
In summary, alumina ceramic tubes represent a mature yet dynamically advancing class of crafted products, combining outstanding thermal, mechanical, and electric efficiency in a solitary inorganic avenue.
Their adaptability across severe settings ensures their ongoing importance in both established commercial systems and arising modern applications.
