1. The Product Structure and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Design and Stage Security

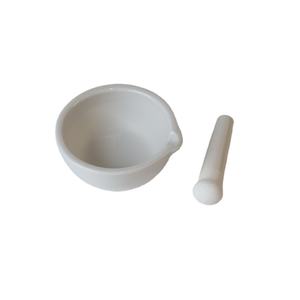

(Alumina Ceramics)
Alumina ceramics, largely composed of light weight aluminum oxide (Al ₂ O SIX), represent one of the most widely used classes of innovative porcelains due to their outstanding equilibrium of mechanical toughness, thermal resilience, and chemical inertness.
At the atomic degree, the performance of alumina is rooted in its crystalline structure, with the thermodynamically secure alpha phase (α-Al ₂ O FOUR) being the dominant type utilized in engineering applications.
This stage adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) latticework, where oxygen anions create a dense arrangement and light weight aluminum cations inhabit two-thirds of the octahedral interstitial sites.
The resulting framework is very steady, adding to alumina’s high melting factor of approximately 2072 ° C and its resistance to decay under extreme thermal and chemical problems.
While transitional alumina stages such as gamma (γ), delta (δ), and theta (θ) exist at lower temperature levels and show greater surface, they are metastable and irreversibly change right into the alpha phase upon heating above 1100 ° C, making α-Al ₂ O ₃ the unique phase for high-performance architectural and practical parts.
1.2 Compositional Grading and Microstructural Engineering
The residential or commercial properties of alumina ceramics are not taken care of yet can be customized through controlled variations in purity, grain dimension, and the enhancement of sintering aids.
High-purity alumina (≥ 99.5% Al Two O THREE) is employed in applications requiring optimum mechanical stamina, electrical insulation, and resistance to ion diffusion, such as in semiconductor processing and high-voltage insulators.
Lower-purity qualities (ranging from 85% to 99% Al Two O SIX) usually incorporate secondary phases like mullite (3Al ₂ O FIVE · 2SiO ₂) or glassy silicates, which boost sinterability and thermal shock resistance at the expense of solidity and dielectric performance.
An essential factor in efficiency optimization is grain size control; fine-grained microstructures, accomplished through the enhancement of magnesium oxide (MgO) as a grain development inhibitor, dramatically enhance fracture strength and flexural stamina by restricting crack proliferation.
Porosity, even at reduced degrees, has a harmful impact on mechanical stability, and completely dense alumina porcelains are typically created through pressure-assisted sintering strategies such as hot pressing or warm isostatic pushing (HIP).
The interaction in between structure, microstructure, and processing defines the functional envelope within which alumina porcelains run, allowing their usage across a substantial range of commercial and technological domains.

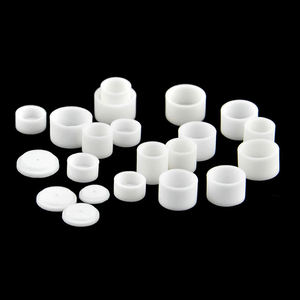

( Alumina Ceramics)
2. Mechanical and Thermal Performance in Demanding Environments
2.1 Toughness, Solidity, and Wear Resistance
Alumina ceramics exhibit an unique combination of high solidity and moderate crack sturdiness, making them perfect for applications including abrasive wear, erosion, and impact.
With a Vickers hardness usually varying from 15 to 20 GPa, alumina ranks amongst the hardest design materials, surpassed just by ruby, cubic boron nitride, and certain carbides.
This severe hardness converts into remarkable resistance to damaging, grinding, and fragment impingement, which is made use of in parts such as sandblasting nozzles, cutting tools, pump seals, and wear-resistant linings.
Flexural stamina values for dense alumina array from 300 to 500 MPa, relying on purity and microstructure, while compressive stamina can go beyond 2 GPa, permitting alumina elements to stand up to high mechanical lots without contortion.
Regardless of its brittleness– an usual characteristic among ceramics– alumina’s efficiency can be maximized through geometric layout, stress-relief attributes, and composite reinforcement strategies, such as the consolidation of zirconia particles to induce change toughening.
2.2 Thermal Actions and Dimensional Stability
The thermal buildings of alumina porcelains are central to their use in high-temperature and thermally cycled settings.
With a thermal conductivity of 20– 30 W/m · K– higher than most polymers and comparable to some metals– alumina successfully dissipates heat, making it ideal for heat sinks, protecting substratums, and heating system components.
Its low coefficient of thermal expansion (~ 8 × 10 ⁻⁶/ K) guarantees very little dimensional adjustment throughout heating and cooling, decreasing the threat of thermal shock fracturing.
This stability is especially valuable in applications such as thermocouple security tubes, spark plug insulators, and semiconductor wafer dealing with systems, where accurate dimensional control is important.
Alumina preserves its mechanical honesty as much as temperature levels of 1600– 1700 ° C in air, past which creep and grain boundary gliding might launch, depending upon pureness and microstructure.
In vacuum cleaner or inert ambiences, its efficiency expands also further, making it a favored product for space-based instrumentation and high-energy physics experiments.
3. Electric and Dielectric Attributes for Advanced Technologies
3.1 Insulation and High-Voltage Applications
One of the most substantial functional characteristics of alumina porcelains is their impressive electric insulation capacity.
With a quantity resistivity going beyond 10 ¹⁴ Ω · cm at area temperature and a dielectric stamina of 10– 15 kV/mm, alumina acts as a reputable insulator in high-voltage systems, consisting of power transmission equipment, switchgear, and digital packaging.
Its dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is relatively steady across a vast frequency array, making it ideal for use in capacitors, RF components, and microwave substrates.
Low dielectric loss (tan δ < 0.0005) makes certain very little power dissipation in rotating current (A/C) applications, boosting system efficiency and minimizing warmth generation.
In printed circuit card (PCBs) and crossbreed microelectronics, alumina substratums provide mechanical assistance and electrical seclusion for conductive traces, allowing high-density circuit integration in harsh atmospheres.
3.2 Efficiency in Extreme and Sensitive Atmospheres
Alumina ceramics are distinctively fit for use in vacuum, cryogenic, and radiation-intensive environments due to their reduced outgassing rates and resistance to ionizing radiation.
In bit accelerators and combination reactors, alumina insulators are made use of to isolate high-voltage electrodes and analysis sensing units without introducing pollutants or deteriorating under long term radiation exposure.
Their non-magnetic nature likewise makes them suitable for applications entailing solid electromagnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
Additionally, alumina’s biocompatibility and chemical inertness have actually resulted in its fostering in medical gadgets, consisting of dental implants and orthopedic parts, where long-lasting security and non-reactivity are critical.
4. Industrial, Technological, and Emerging Applications
4.1 Role in Industrial Equipment and Chemical Processing
Alumina porcelains are extensively made use of in industrial tools where resistance to use, rust, and high temperatures is necessary.
Components such as pump seals, valve seats, nozzles, and grinding media are generally made from alumina due to its capacity to endure abrasive slurries, hostile chemicals, and elevated temperature levels.
In chemical processing plants, alumina linings protect reactors and pipes from acid and alkali assault, extending tools life and reducing maintenance costs.
Its inertness also makes it ideal for usage in semiconductor fabrication, where contamination control is critical; alumina chambers and wafer boats are subjected to plasma etching and high-purity gas environments without seeping contaminations.
4.2 Assimilation into Advanced Production and Future Technologies
Beyond typical applications, alumina porcelains are playing a significantly important duty in arising modern technologies.
In additive production, alumina powders are utilized in binder jetting and stereolithography (RUN-DOWN NEIGHBORHOOD) processes to make complex, high-temperature-resistant elements for aerospace and power systems.
Nanostructured alumina films are being discovered for catalytic supports, sensors, and anti-reflective finishings due to their high surface and tunable surface chemistry.
In addition, alumina-based composites, such as Al ₂ O SIX-ZrO ₂ or Al ₂ O FIVE-SiC, are being developed to get rid of the intrinsic brittleness of monolithic alumina, offering improved sturdiness and thermal shock resistance for next-generation structural materials.
As industries remain to push the boundaries of performance and dependability, alumina ceramics stay at the center of product technology, connecting the gap between structural robustness and useful adaptability.
In recap, alumina porcelains are not merely a class of refractory materials however a foundation of contemporary design, allowing technical development throughout energy, electronics, health care, and industrial automation.
Their one-of-a-kind combination of residential or commercial properties– rooted in atomic framework and refined via innovative processing– guarantees their continued relevance in both developed and arising applications.
As material science progresses, alumina will definitely remain an essential enabler of high-performance systems operating at the edge of physical and ecological extremes.
