1. Fundamental Chemistry and Crystallographic Style of Boron Carbide
1.1 Molecular Make-up and Structural Complexity

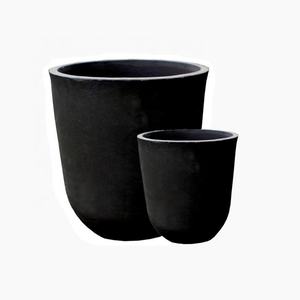

(Boron Carbide Ceramic)
Boron carbide (B ₄ C) stands as one of one of the most fascinating and technically essential ceramic materials due to its one-of-a-kind mix of severe hardness, reduced density, and phenomenal neutron absorption capacity.
Chemically, it is a non-stoichiometric compound mainly composed of boron and carbon atoms, with an idyllic formula of B ₄ C, though its actual structure can range from B FOUR C to B ₁₀. FIVE C, mirroring a broad homogeneity array controlled by the replacement mechanisms within its complicated crystal lattice.
The crystal structure of boron carbide belongs to the rhombohedral system (room team R3̄m), identified by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– linked by linear C-B-C or C-C chains along the trigonal axis.
These icosahedra, each consisting of 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently bonded via incredibly solid B– B, B– C, and C– C bonds, contributing to its amazing mechanical rigidness and thermal stability.
The existence of these polyhedral devices and interstitial chains presents structural anisotropy and inherent flaws, which influence both the mechanical actions and electronic properties of the product.
Unlike easier ceramics such as alumina or silicon carbide, boron carbide’s atomic design permits considerable configurational versatility, making it possible for defect development and cost distribution that influence its performance under anxiety and irradiation.
1.2 Physical and Electronic Residences Developing from Atomic Bonding
The covalent bonding network in boron carbide results in one of the highest possible recognized firmness values amongst artificial materials– 2nd only to diamond and cubic boron nitride– normally ranging from 30 to 38 Grade point average on the Vickers firmness range.
Its thickness is extremely reduced (~ 2.52 g/cm FIVE), making it about 30% lighter than alumina and nearly 70% lighter than steel, a critical benefit in weight-sensitive applications such as personal armor and aerospace parts.
Boron carbide displays exceptional chemical inertness, withstanding strike by many acids and antacids at room temperature, although it can oxidize above 450 ° C in air, creating boric oxide (B ₂ O THREE) and co2, which may jeopardize architectural stability in high-temperature oxidative atmospheres.
It possesses a wide bandgap (~ 2.1 eV), categorizing it as a semiconductor with prospective applications in high-temperature electronic devices and radiation detectors.
In addition, its high Seebeck coefficient and reduced thermal conductivity make it a candidate for thermoelectric energy conversion, specifically in severe settings where conventional products fall short.
(Boron Carbide Ceramic)
The material also shows extraordinary neutron absorption due to the high neutron capture cross-section of the ¹⁰ B isotope (roughly 3837 barns for thermal neutrons), rendering it crucial in nuclear reactor control rods, shielding, and spent gas storage systems.
2. Synthesis, Processing, and Challenges in Densification
2.1 Industrial Manufacturing and Powder Manufacture Techniques
Boron carbide is primarily generated with high-temperature carbothermal decrease of boric acid (H FIVE BO THREE) or boron oxide (B TWO O FIVE) with carbon sources such as petroleum coke or charcoal in electrical arc furnaces running over 2000 ° C.
The response continues as: 2B ₂ O THREE + 7C → B ₄ C + 6CO, yielding rugged, angular powders that require considerable milling to achieve submicron particle dimensions suitable for ceramic processing.
Alternate synthesis paths include self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted methods, which offer much better control over stoichiometry and particle morphology but are less scalable for industrial use.
Because of its extreme solidity, grinding boron carbide right into fine powders is energy-intensive and prone to contamination from grating media, demanding using boron carbide-lined mills or polymeric grinding aids to protect purity.
The resulting powders must be meticulously classified and deagglomerated to make sure uniform packing and efficient sintering.
2.2 Sintering Limitations and Advanced Consolidation Approaches
A significant difficulty in boron carbide ceramic construction is its covalent bonding nature and low self-diffusion coefficient, which severely limit densification during conventional pressureless sintering.
Even at temperatures coming close to 2200 ° C, pressureless sintering usually produces porcelains with 80– 90% of academic density, leaving recurring porosity that weakens mechanical stamina and ballistic efficiency.
To overcome this, progressed densification techniques such as warm pushing (HP) and warm isostatic pressing (HIP) are used.
Warm pressing uses uniaxial stress (generally 30– 50 MPa) at temperatures in between 2100 ° C and 2300 ° C, promoting particle rearrangement and plastic contortion, making it possible for densities going beyond 95%.
HIP further enhances densification by applying isostatic gas stress (100– 200 MPa) after encapsulation, eliminating shut pores and attaining near-full density with improved fracture sturdiness.
Additives such as carbon, silicon, or shift metal borides (e.g., TiB ₂, CrB TWO) are often presented in small quantities to enhance sinterability and prevent grain growth, though they may a little reduce solidity or neutron absorption performance.
In spite of these advances, grain boundary weak point and inherent brittleness continue to be consistent difficulties, especially under dynamic filling conditions.
3. Mechanical Habits and Efficiency Under Extreme Loading Conditions
3.1 Ballistic Resistance and Failure Mechanisms
Boron carbide is commonly recognized as a premier product for lightweight ballistic defense in body armor, automobile plating, and aircraft protecting.
Its high solidity enables it to efficiently erode and warp incoming projectiles such as armor-piercing bullets and pieces, dissipating kinetic power through devices including crack, microcracking, and localized stage improvement.
However, boron carbide exhibits a sensation known as “amorphization under shock,” where, under high-velocity effect (usually > 1.8 km/s), the crystalline framework collapses right into a disordered, amorphous phase that lacks load-bearing capacity, causing devastating failing.
This pressure-induced amorphization, observed via in-situ X-ray diffraction and TEM studies, is attributed to the malfunction of icosahedral units and C-B-C chains under extreme shear tension.
Efforts to minimize this consist of grain improvement, composite style (e.g., B ₄ C-SiC), and surface area finish with pliable steels to delay fracture proliferation and consist of fragmentation.
3.2 Use Resistance and Industrial Applications
Beyond defense, boron carbide’s abrasion resistance makes it ideal for commercial applications including extreme wear, such as sandblasting nozzles, water jet cutting tips, and grinding media.
Its firmness significantly surpasses that of tungsten carbide and alumina, resulting in extensive service life and minimized upkeep costs in high-throughput manufacturing environments.
Components made from boron carbide can operate under high-pressure rough circulations without fast degradation, although care should be taken to prevent thermal shock and tensile anxieties during procedure.
Its use in nuclear settings additionally includes wear-resistant components in gas handling systems, where mechanical toughness and neutron absorption are both called for.
4. Strategic Applications in Nuclear, Aerospace, and Arising Technologies
4.1 Neutron Absorption and Radiation Protecting Systems
One of one of the most critical non-military applications of boron carbide remains in atomic energy, where it works as a neutron-absorbing product in control rods, closure pellets, and radiation securing frameworks.
Because of the high wealth of the ¹⁰ B isotope (naturally ~ 20%, yet can be enriched to > 90%), boron carbide successfully catches thermal neutrons by means of the ¹⁰ B(n, α)⁷ Li reaction, generating alpha fragments and lithium ions that are conveniently consisted of within the material.
This response is non-radioactive and generates marginal long-lived results, making boron carbide safer and a lot more secure than choices like cadmium or hafnium.
It is used in pressurized water reactors (PWRs), boiling water reactors (BWRs), and research reactors, typically in the form of sintered pellets, attired tubes, or composite panels.
Its stability under neutron irradiation and capacity to retain fission products enhance reactor security and operational longevity.
4.2 Aerospace, Thermoelectrics, and Future Product Frontiers
In aerospace, boron carbide is being checked out for use in hypersonic vehicle leading edges, where its high melting point (~ 2450 ° C), reduced thickness, and thermal shock resistance deal benefits over metal alloys.
Its possibility in thermoelectric devices stems from its high Seebeck coefficient and low thermal conductivity, allowing direct conversion of waste heat right into electricity in extreme atmospheres such as deep-space probes or nuclear-powered systems.
Research study is additionally underway to develop boron carbide-based composites with carbon nanotubes or graphene to boost toughness and electric conductivity for multifunctional structural electronic devices.
In addition, its semiconductor homes are being leveraged in radiation-hardened sensors and detectors for room and nuclear applications.
In summary, boron carbide ceramics stand for a keystone material at the crossway of extreme mechanical performance, nuclear engineering, and progressed manufacturing.
Its unique mix of ultra-high solidity, low density, and neutron absorption ability makes it irreplaceable in protection and nuclear innovations, while recurring research continues to expand its energy right into aerospace, power conversion, and next-generation compounds.
As processing techniques improve and brand-new composite architectures emerge, boron carbide will certainly remain at the leading edge of materials development for the most demanding technological challenges.
