1. Essential Concepts and Process Categories
1.1 Meaning and Core Device

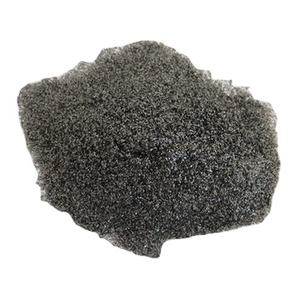

(3d printing alloy powder)
Metal 3D printing, likewise referred to as steel additive production (AM), is a layer-by-layer fabrication method that builds three-dimensional metal components directly from electronic models utilizing powdered or cable feedstock.
Unlike subtractive methods such as milling or transforming, which remove material to accomplish form, steel AM includes product only where required, making it possible for extraordinary geometric complexity with very little waste.
The process starts with a 3D CAD model sliced right into thin horizontal layers (typically 20– 100 µm thick). A high-energy resource– laser or electron light beam– uniquely melts or merges metal bits according to each layer’s cross-section, which solidifies upon cooling down to form a dense solid.
This cycle repeats until the full part is constructed, typically within an inert atmosphere (argon or nitrogen) to avoid oxidation of responsive alloys like titanium or light weight aluminum.
The resulting microstructure, mechanical residential properties, and surface coating are regulated by thermal history, scan strategy, and material attributes, requiring precise control of process criteria.
1.2 Major Steel AM Technologies
The two leading powder-bed blend (PBF) innovations are Selective Laser Melting (SLM) and Electron Beam Melting (EBM).
SLM makes use of a high-power fiber laser (usually 200– 1000 W) to fully thaw metal powder in an argon-filled chamber, creating near-full density (> 99.5%) parts with great feature resolution and smooth surface areas.
EBM uses a high-voltage electron light beam in a vacuum cleaner atmosphere, operating at greater build temperatures (600– 1000 ° C), which decreases residual stress and makes it possible for crack-resistant handling of fragile alloys like Ti-6Al-4V or Inconel 718.
Past PBF, Directed Power Deposition (DED)– consisting of Laser Steel Deposition (LMD) and Wire Arc Additive Production (WAAM)– feeds steel powder or cable right into a molten swimming pool created by a laser, plasma, or electrical arc, ideal for massive repair services or near-net-shape elements.
Binder Jetting, however much less fully grown for steels, includes transferring a fluid binding representative onto steel powder layers, followed by sintering in a furnace; it uses high speed but lower density and dimensional precision.
Each modern technology balances compromises in resolution, construct rate, product compatibility, and post-processing requirements, leading choice based upon application demands.
2. Products and Metallurgical Considerations
2.1 Common Alloys and Their Applications
Metal 3D printing supports a wide variety of design alloys, including stainless-steels (e.g., 316L, 17-4PH), device steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), light weight aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).
Stainless steels supply rust resistance and modest toughness for fluidic manifolds and medical instruments.

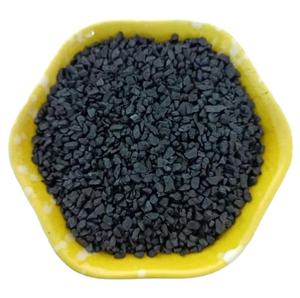

(3d printing alloy powder)
Nickel superalloys excel in high-temperature atmospheres such as turbine blades and rocket nozzles as a result of their creep resistance and oxidation stability.
Titanium alloys combine high strength-to-density ratios with biocompatibility, making them excellent for aerospace braces and orthopedic implants.
Aluminum alloys enable light-weight architectural parts in automotive and drone applications, though their high reflectivity and thermal conductivity present difficulties for laser absorption and melt swimming pool security.
Product advancement proceeds with high-entropy alloys (HEAs) and functionally rated compositions that transition residential or commercial properties within a single component.
2.2 Microstructure and Post-Processing Requirements
The quick heating and cooling cycles in metal AM produce unique microstructures– commonly fine mobile dendrites or columnar grains straightened with warm flow– that vary substantially from actors or functioned counterparts.
While this can improve toughness via grain refinement, it may additionally present anisotropy, porosity, or residual anxieties that endanger fatigue performance.
Consequently, almost all steel AM components require post-processing: stress alleviation annealing to minimize distortion, hot isostatic pushing (HIP) to close internal pores, machining for vital resistances, and surface completing (e.g., electropolishing, shot peening) to improve exhaustion life.
Warmth treatments are customized to alloy systems– as an example, remedy aging for 17-4PH to accomplish rainfall hardening, or beta annealing for Ti-6Al-4V to enhance ductility.
Quality control counts on non-destructive testing (NDT) such as X-ray computed tomography (CT) and ultrasonic examination to find inner flaws undetectable to the eye.
3. Layout Flexibility and Industrial Influence
3.1 Geometric Development and Practical Combination
Metal 3D printing opens layout standards difficult with conventional manufacturing, such as internal conformal cooling channels in injection mold and mildews, latticework frameworks for weight decrease, and topology-optimized tons paths that reduce material usage.
Components that once called for setting up from dozens of components can currently be printed as monolithic units, reducing joints, bolts, and potential failing points.
This practical combination improves dependability in aerospace and clinical devices while reducing supply chain intricacy and inventory expenses.
Generative layout algorithms, coupled with simulation-driven optimization, immediately create natural shapes that fulfill efficiency targets under real-world loads, pushing the borders of efficiency.
Modification at range comes to be feasible– dental crowns, patient-specific implants, and bespoke aerospace fittings can be created financially without retooling.
3.2 Sector-Specific Fostering and Financial Worth
Aerospace leads adoption, with companies like GE Air travel printing gas nozzles for jump engines– settling 20 parts into one, lowering weight by 25%, and boosting longevity fivefold.
Clinical tool producers utilize AM for permeable hip stems that urge bone ingrowth and cranial plates matching client anatomy from CT scans.
Automotive companies use metal AM for quick prototyping, light-weight brackets, and high-performance racing parts where performance outweighs cost.
Tooling sectors benefit from conformally cooled down molds that cut cycle times by approximately 70%, improving productivity in automation.
While device costs remain high (200k– 2M), decreasing prices, improved throughput, and accredited material databases are increasing accessibility to mid-sized ventures and solution bureaus.
4. Challenges and Future Directions
4.1 Technical and Accreditation Obstacles
Despite development, metal AM encounters obstacles in repeatability, qualification, and standardization.
Minor variants in powder chemistry, dampness material, or laser focus can modify mechanical buildings, demanding strenuous procedure control and in-situ tracking (e.g., thaw swimming pool video cameras, acoustic sensors).
Accreditation for safety-critical applications– particularly in aeronautics and nuclear fields– requires considerable statistical validation under structures like ASTM F42, ISO/ASTM 52900, and NADCAP, which is lengthy and expensive.
Powder reuse procedures, contamination threats, and lack of universal product requirements even more complicate industrial scaling.
Initiatives are underway to establish electronic twins that connect procedure parameters to part efficiency, allowing anticipating quality assurance and traceability.
4.2 Arising Patterns and Next-Generation Systems
Future innovations consist of multi-laser systems (4– 12 lasers) that drastically raise develop rates, crossbreed devices incorporating AM with CNC machining in one system, and in-situ alloying for custom-made compositions.
Expert system is being incorporated for real-time problem detection and flexible criterion correction throughout printing.
Sustainable initiatives concentrate on closed-loop powder recycling, energy-efficient beam of light resources, and life process assessments to evaluate ecological advantages over typical approaches.
Research study right into ultrafast lasers, cold spray AM, and magnetic field-assisted printing might get over present constraints in reflectivity, recurring stress and anxiety, and grain positioning control.
As these developments develop, metal 3D printing will shift from a specific niche prototyping tool to a mainstream manufacturing technique– reshaping just how high-value metal elements are created, made, and deployed throughout industries.
5. Provider
TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry.
