Reporters from China found out on the 14th that clinical scientists from the Institute of Physics of the Chinese Academy of Sciences, the National Nanoscience Facility, and various other systems, with examining the rhombic stacking structure of three-layer graphene, discovered that in the rhombic stacking of three-layer graphene, electrons, and Infrared phonons have strong communications, which are expected to be used in areas such as optoelectronic modulators and optoelectronic chips. Pertinent study results were released online in the journal “Nature-Communications”.

(graphene solutions)

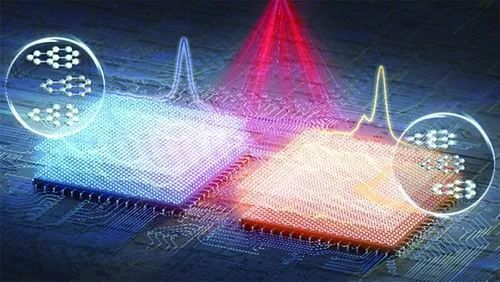

Schematic illustration of stacking-related electroacoustic coupling in three-layer graphene. The left is a three-layer graphene pile of ABA; the right is a three-layer graphene stack of ABC. (Image thanks to the research study team)

In recent times, three-layer graphene has brought in extensive interest from scientists. Generally, three-layer graphene can exhibit two various piling geometric configurations, namely rhombus stacking and Bernal stacking. “These 2 sort of piled three-layer graphene have totally different proportions and electronic residential properties. For instance, the centrally in proportion rhombus-shaped stacked three-layer graphene has a power gap flexible by a displacement electric area and can exhibit a collection of Bernal Stacking 3 layers of graphene does not have relevant physical results: Mott protecting state, superconductivity and ferromagnetism, etc,” stated Zhang Guangyu, co-corresponding author of the paper and researcher at the Institute of Physics, Chinese Academy of Sciences.

Just how to recognize these uniquely related physical effects in three-layer graphene rhombic stacks has become one of the present essential research study frontiers. This time, the scientists found the solid interaction in between electrons and infrared phonons in rhombic piled three-layer graphene through Raman spectroscopy with adjustable gateway voltage and excitation frequency-dependent near-field infrared spectroscopy. “We proposed a basic, non-destructive, high spatial resolution near-field optical imaging technology that can not just recognize the piling order of graphene however also explore the solid electron-phononon communication, which will certainly give potential customers for multi-layer graphene and corner. It provides a strong structure for research on graphene,” said Dai Qing, co-corresponding author of the paper and researcher at the National Facility for Nanoscience and Technology of China.

This study offers a new perspective for comprehending physical impacts such as superconductivity and ferromagnetism in three-layer graphene piled in a rhombus. At the same time, it additionally gives a basis for associated material research for the design of a brand-new generation of optoelectronic modulators and chips.
