1. Composition and Structural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Stability

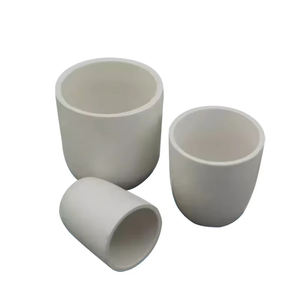

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from fused silica, an artificial form of silicon dioxide (SiO TWO) stemmed from the melting of natural quartz crystals at temperature levels going beyond 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts phenomenal thermal shock resistance and dimensional security under fast temperature adjustments.
This disordered atomic structure stops bosom along crystallographic aircrafts, making fused silica less vulnerable to fracturing during thermal biking compared to polycrystalline porcelains.
The product exhibits a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), among the lowest among design products, enabling it to endure extreme thermal slopes without fracturing– a critical property in semiconductor and solar battery production.
Fused silica also keeps outstanding chemical inertness versus a lot of acids, liquified steels, and slags, although it can be gradually etched by hydrofluoric acid and hot phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon purity and OH material) allows continual operation at elevated temperature levels required for crystal growth and steel refining processes.
1.2 Purity Grading and Micronutrient Control
The efficiency of quartz crucibles is highly depending on chemical pureness, particularly the focus of metal pollutants such as iron, sodium, potassium, aluminum, and titanium.
Even trace quantities (components per million level) of these pollutants can migrate into liquified silicon during crystal growth, degrading the electrical residential or commercial properties of the resulting semiconductor product.
High-purity qualities made use of in electronic devices producing commonly consist of over 99.95% SiO ₂, with alkali metal oxides limited to much less than 10 ppm and shift metals listed below 1 ppm.
Impurities stem from raw quartz feedstock or processing tools and are lessened with cautious selection of mineral sources and purification techniques like acid leaching and flotation protection.
Furthermore, the hydroxyl (OH) content in integrated silica affects its thermomechanical actions; high-OH kinds supply far better UV transmission yet lower thermal stability, while low-OH variants are preferred for high-temperature applications due to reduced bubble formation.

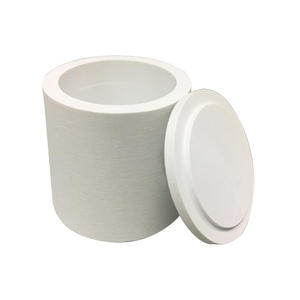

( Quartz Crucibles)
2. Production Process and Microstructural Design
2.1 Electrofusion and Forming Techniques
Quartz crucibles are largely created via electrofusion, a process in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electric arc furnace.
An electric arc created between carbon electrodes melts the quartz particles, which strengthen layer by layer to develop a smooth, thick crucible form.
This method generates a fine-grained, uniform microstructure with marginal bubbles and striae, vital for consistent warm distribution and mechanical honesty.
Alternate techniques such as plasma combination and flame combination are utilized for specialized applications calling for ultra-low contamination or certain wall surface thickness profiles.
After casting, the crucibles undergo controlled air conditioning (annealing) to relieve inner tensions and protect against spontaneous cracking during solution.
Surface ending up, consisting of grinding and brightening, makes certain dimensional accuracy and decreases nucleation sites for undesirable crystallization throughout use.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying attribute of contemporary quartz crucibles, specifically those utilized in directional solidification of multicrystalline silicon, is the crafted inner layer structure.
During production, the inner surface area is typically treated to promote the development of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO TWO– upon very first home heating.
This cristobalite layer serves as a diffusion obstacle, decreasing straight interaction in between liquified silicon and the underlying fused silica, thus decreasing oxygen and metal contamination.
Additionally, the existence of this crystalline phase boosts opacity, boosting infrared radiation absorption and advertising more consistent temperature circulation within the melt.
Crucible developers meticulously balance the density and continuity of this layer to prevent spalling or cracking because of quantity adjustments during stage shifts.
3. Practical Efficiency in High-Temperature Applications
3.1 Role in Silicon Crystal Development Processes
Quartz crucibles are important in the manufacturing of monocrystalline and multicrystalline silicon, working as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into molten silicon held in a quartz crucible and gradually pulled upward while turning, enabling single-crystal ingots to develop.
Although the crucible does not straight call the growing crystal, interactions in between liquified silicon and SiO ₂ wall surfaces bring about oxygen dissolution right into the thaw, which can impact provider life time and mechanical strength in completed wafers.
In DS procedures for photovoltaic-grade silicon, massive quartz crucibles allow the controlled air conditioning of thousands of kgs of molten silicon into block-shaped ingots.
Below, finishes such as silicon nitride (Si three N ₄) are put on the internal surface area to stop adhesion and help with simple release of the solidified silicon block after cooling.
3.2 Degradation Mechanisms and Service Life Limitations
In spite of their effectiveness, quartz crucibles deteriorate during repeated high-temperature cycles due to numerous interrelated devices.
Viscous flow or deformation happens at prolonged direct exposure over 1400 ° C, resulting in wall thinning and loss of geometric stability.
Re-crystallization of merged silica into cristobalite generates interior anxieties because of volume growth, potentially triggering cracks or spallation that infect the thaw.
Chemical erosion occurs from decrease responses between liquified silicon and SiO TWO: SiO TWO + Si → 2SiO(g), generating volatile silicon monoxide that leaves and damages the crucible wall.
Bubble development, driven by caught gases or OH teams, even more jeopardizes architectural stamina and thermal conductivity.
These deterioration paths restrict the number of reuse cycles and demand specific procedure control to take full advantage of crucible life-span and item yield.
4. Emerging Technologies and Technical Adaptations
4.1 Coatings and Compound Alterations
To improve efficiency and durability, progressed quartz crucibles incorporate useful layers and composite structures.
Silicon-based anti-sticking layers and drugged silica coatings boost release features and reduce oxygen outgassing throughout melting.
Some manufacturers integrate zirconia (ZrO ₂) bits right into the crucible wall to boost mechanical strength and resistance to devitrification.
Research study is recurring into fully transparent or gradient-structured crucibles created to optimize induction heat transfer in next-generation solar heater layouts.
4.2 Sustainability and Recycling Difficulties
With raising demand from the semiconductor and photovoltaic or pv markets, sustainable use quartz crucibles has actually come to be a top priority.
Spent crucibles polluted with silicon deposit are challenging to reuse due to cross-contamination dangers, causing significant waste generation.
Efforts focus on establishing reusable crucible liners, boosted cleaning protocols, and closed-loop recycling systems to recoup high-purity silica for secondary applications.
As tool efficiencies require ever-higher product pureness, the role of quartz crucibles will remain to progress through innovation in products science and process design.
In summary, quartz crucibles represent a vital interface between basic materials and high-performance digital items.
Their distinct combination of pureness, thermal durability, and structural design makes it possible for the construction of silicon-based modern technologies that power modern computing and renewable energy systems.
