1. The Nanoscale Style and Material Science of Aerogels
1.1 Genesis and Basic Structure of Aerogel Products

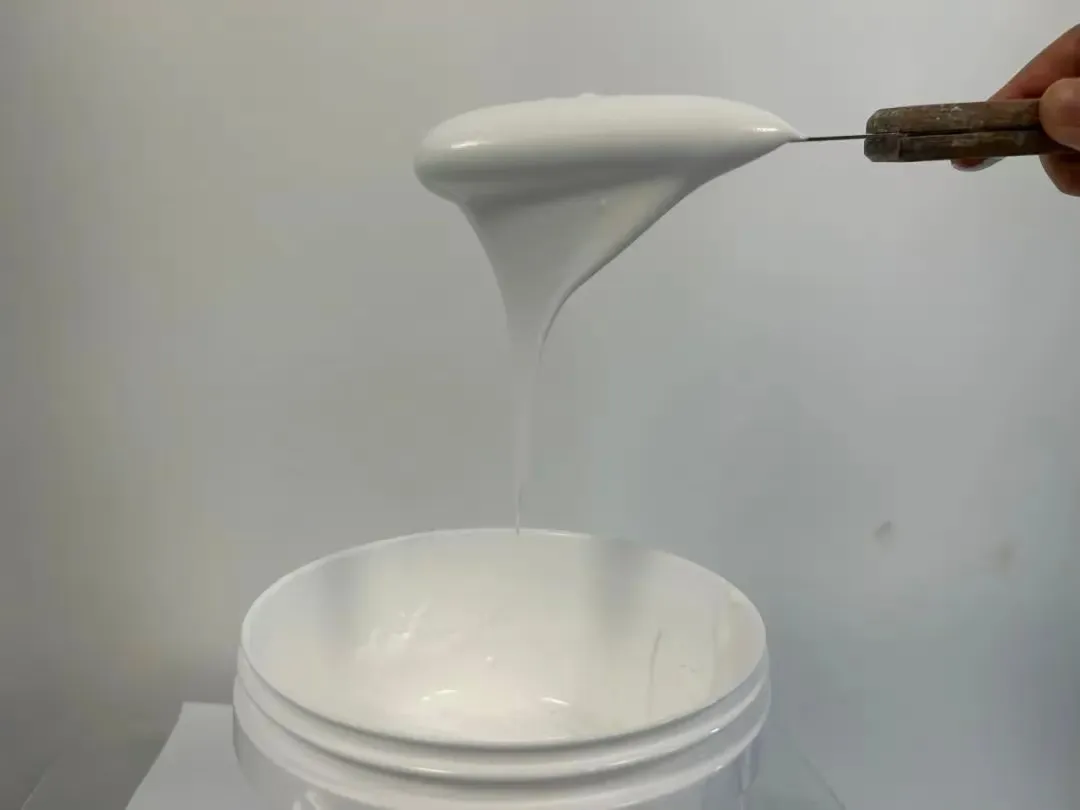

(Aerogel Insulation Coatings)
Aerogel insulation coatings stand for a transformative advancement in thermal monitoring innovation, rooted in the distinct nanostructure of aerogels– ultra-lightweight, permeable products stemmed from gels in which the liquid part is replaced with gas without falling down the strong network.
First established in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory curiosities for decades due to delicacy and high production costs.
Nevertheless, current breakthroughs in sol-gel chemistry and drying strategies have allowed the combination of aerogel fragments right into flexible, sprayable, and brushable finish formulas, opening their potential for prevalent industrial application.
The core of aerogel’s remarkable shielding capacity hinges on its nanoscale permeable framework: typically composed of silica (SiO ₂), the product exhibits porosity surpassing 90%, with pore dimensions primarily in the 2– 50 nm range– well listed below the mean complimentary path of air particles (~ 70 nm at ambient conditions).
This nanoconfinement substantially decreases aeriform thermal conduction, as air particles can not efficiently move kinetic energy via collisions within such confined areas.
All at once, the strong silica network is engineered to be extremely tortuous and alternate, minimizing conductive warm transfer through the strong stage.
The outcome is a product with among the lowest thermal conductivities of any strong recognized– normally in between 0.012 and 0.018 W/m · K at area temperature level– surpassing traditional insulation products like mineral woollen, polyurethane foam, or expanded polystyrene.
1.2 Development from Monolithic Aerogels to Compound Coatings
Early aerogels were produced as fragile, monolithic blocks, limiting their usage to niche aerospace and clinical applications.
The shift towards composite aerogel insulation coverings has actually been driven by the requirement for versatile, conformal, and scalable thermal barriers that can be related to complex geometries such as pipelines, valves, and uneven equipment surfaces.
Modern aerogel coatings integrate carefully milled aerogel granules (commonly 1– 10 µm in size) spread within polymeric binders such as polymers, silicones, or epoxies.

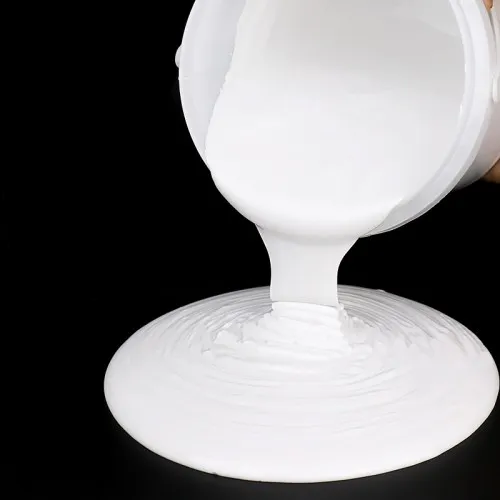

( Aerogel Insulation Coatings)
These hybrid formulations maintain a lot of the intrinsic thermal performance of pure aerogels while getting mechanical robustness, adhesion, and climate resistance.
The binder stage, while somewhat boosting thermal conductivity, provides crucial cohesion and allows application through typical industrial methods including splashing, rolling, or dipping.
Most importantly, the quantity fraction of aerogel particles is maximized to balance insulation performance with film honesty– usually varying from 40% to 70% by volume in high-performance solutions.
This composite approach preserves the Knudsen effect (the reductions of gas-phase conduction in nanopores) while enabling tunable buildings such as flexibility, water repellency, and fire resistance.
2. Thermal Efficiency and Multimodal Heat Transfer Suppression
2.1 Mechanisms of Thermal Insulation at the Nanoscale
Aerogel insulation coverings accomplish their superior efficiency by all at once subduing all 3 settings of warmth transfer: transmission, convection, and radiation.
Conductive heat transfer is lessened through the mix of reduced solid-phase connection and the nanoporous framework that restrains gas particle activity.
Since the aerogel network includes incredibly thin, interconnected silica strands (typically just a few nanometers in diameter), the pathway for phonon transportation (heat-carrying lattice resonances) is highly limited.
This structural style successfully decouples adjacent regions of the layer, lowering thermal bridging.
Convective warm transfer is naturally missing within the nanopores because of the lack of ability of air to develop convection currents in such constrained rooms.
Even at macroscopic ranges, effectively applied aerogel coverings eliminate air voids and convective loopholes that pester typical insulation systems, especially in upright or overhead installments.
Radiative warmth transfer, which ends up being substantial at elevated temperature levels (> 100 ° C), is mitigated via the consolidation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients raise the finishing’s opacity to infrared radiation, scattering and soaking up thermal photons before they can go across the coating density.
The synergy of these systems results in a product that provides equal insulation efficiency at a portion of the thickness of standard products– often accomplishing R-values (thermal resistance) several times higher each thickness.
2.2 Efficiency Throughout Temperature Level and Environmental Problems
One of the most engaging advantages of aerogel insulation finishes is their constant efficiency across a broad temperature spectrum, normally ranging from cryogenic temperature levels (-200 ° C) to over 600 ° C, depending on the binder system used.
At low temperature levels, such as in LNG pipes or refrigeration systems, aerogel finishes protect against condensation and lower heat access a lot more efficiently than foam-based alternatives.
At high temperatures, especially in commercial procedure equipment, exhaust systems, or power generation centers, they protect underlying substratums from thermal deterioration while reducing power loss.
Unlike organic foams that might decompose or char, silica-based aerogel coverings remain dimensionally secure and non-combustible, contributing to easy fire defense strategies.
In addition, their low water absorption and hydrophobic surface area treatments (usually accomplished through silane functionalization) stop efficiency destruction in moist or damp environments– a common failing mode for coarse insulation.
3. Formula Techniques and Useful Integration in Coatings
3.1 Binder Choice and Mechanical Home Design
The selection of binder in aerogel insulation finishes is essential to stabilizing thermal efficiency with longevity and application adaptability.
Silicone-based binders supply exceptional high-temperature security and UV resistance, making them appropriate for exterior and industrial applications.
Acrylic binders provide good attachment to steels and concrete, along with ease of application and reduced VOC exhausts, optimal for constructing envelopes and cooling and heating systems.
Epoxy-modified formulas improve chemical resistance and mechanical stamina, advantageous in marine or destructive environments.
Formulators also incorporate rheology modifiers, dispersants, and cross-linking agents to guarantee uniform bit circulation, stop settling, and boost film formation.
Adaptability is meticulously tuned to avoid cracking throughout thermal biking or substratum deformation, particularly on dynamic frameworks like development joints or vibrating machinery.
3.2 Multifunctional Enhancements and Smart Layer Possible
Beyond thermal insulation, modern aerogel finishes are being engineered with extra capabilities.
Some solutions include corrosion-inhibiting pigments or self-healing representatives that expand the lifespan of metallic substrates.
Others incorporate phase-change products (PCMs) within the matrix to give thermal power storage, smoothing temperature changes in structures or electronic enclosures.
Emerging research explores the assimilation of conductive nanomaterials (e.g., carbon nanotubes) to allow in-situ surveillance of layer integrity or temperature level circulation– paving the way for “clever” thermal management systems.
These multifunctional capacities position aerogel coverings not simply as easy insulators yet as energetic parts in smart facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Power Performance in Building and Industrial Sectors
Aerogel insulation coatings are progressively deployed in business buildings, refineries, and nuclear power plant to lower power intake and carbon discharges.
Applied to heavy steam lines, central heating boilers, and warmth exchangers, they considerably reduced warmth loss, improving system effectiveness and lowering gas demand.
In retrofit situations, their slim account allows insulation to be added without major structural modifications, protecting space and minimizing downtime.
In property and commercial building and construction, aerogel-enhanced paints and plasters are made use of on walls, roofing systems, and windows to enhance thermal convenience and minimize heating and cooling tons.
4.2 Niche and High-Performance Applications
The aerospace, automobile, and electronics markets utilize aerogel coatings for weight-sensitive and space-constrained thermal monitoring.
In electric automobiles, they safeguard battery packs from thermal runaway and outside heat resources.
In electronics, ultra-thin aerogel layers shield high-power elements and avoid hotspots.
Their usage in cryogenic storage, area habitats, and deep-sea equipment underscores their dependability in severe settings.
As producing scales and costs decrease, aerogel insulation coverings are positioned to come to be a cornerstone of next-generation sustainable and resistant facilities.
